StrongMaster IFA
3m suction arm, hose type, internal joints

EAN: 4251906207123

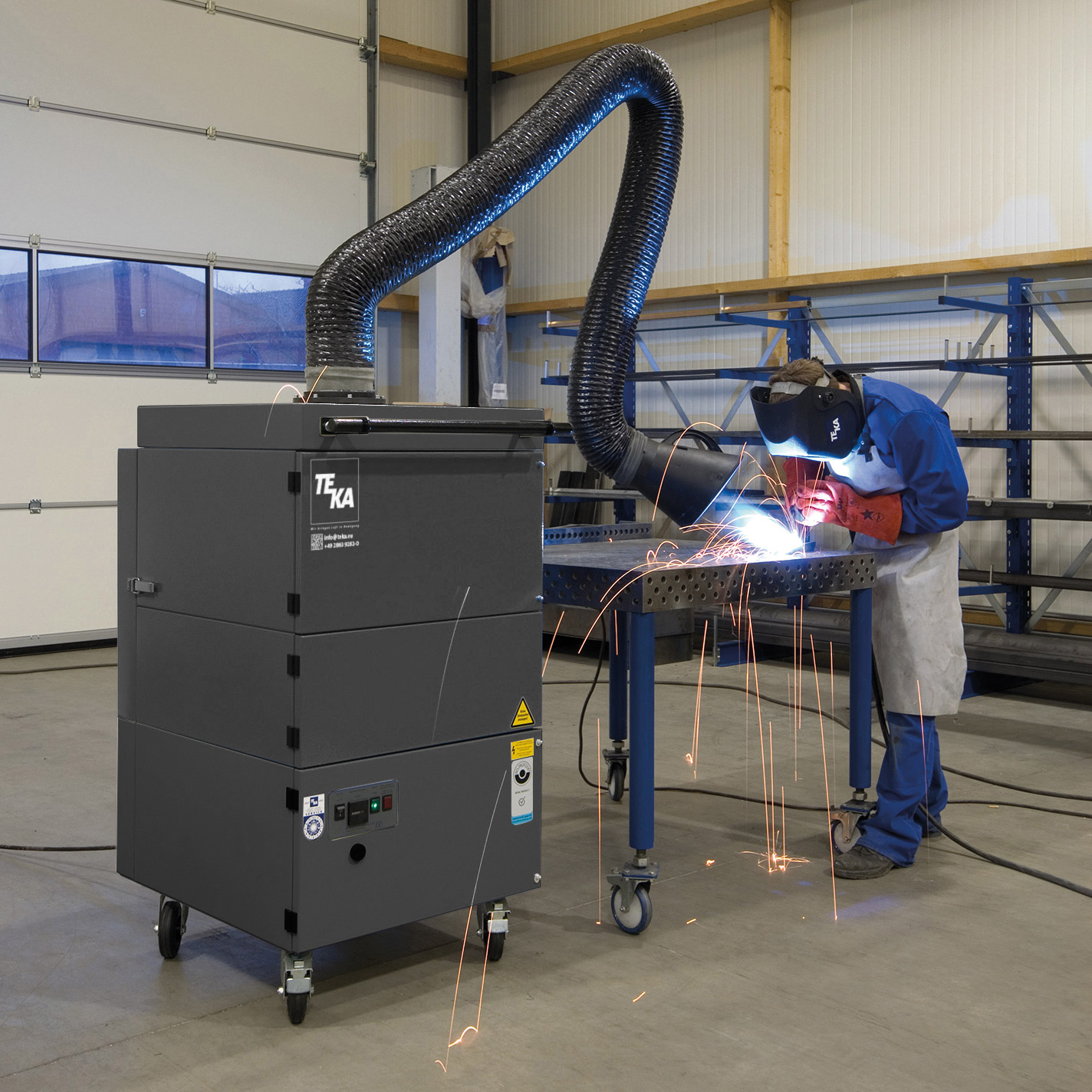

The mobile cartridge filter system captures and filters welding fumes precisely and reliably.

Because of the IFA certification, the system can be used to filter welding smoke from high-alloy steels, galvanized material or aluminum.

The air, which has been purified to more than 99%, can be returned to the working area.

The filter cartridge can be cleaned manually with compressed air.

Properties

Main filter quantity: 1
Volumetric flow (m³/h): 1.860
max. pressure (Pa): 2,900
Operating point: 1,100 m³/h at 1,900 Pa
Engine power (kW): 1.1
Supply voltage (V): 400
Connection frequency (Hz): 50
Current consumption (A): 2.5
Current type: 3Ph+N+PE
Pre-filter: deflector plate
main filter: filter cartridge
Filter class: Dust class M (in accordance with DIN EN 60335-2-69)
Cartridges number: 1
Filter surface (m²): 10
Separation efficiency (%): > 99
Sound level (dB(A)): 72 – in accordance with DIN EN ISO 3744
Weight (kg): 165
Width (mm): 665
Depth (mm): 820
Height (mm): 1,365
Colour: RAL 7016

Replacement parts

Filter cartridge, type standard,
filter area 10m², size: 327 x 600 mm,
The TEKA filter cartridge, type Standard is the original equipment of the CartMaster IFA and the StrongMaster IFA. The cylindrical cartridge in sho...

Your price after login
Add to wishlist
PE bags for dust bin, pack of 10
650 x 650 x 300 mm
Stable dust collection bags with a tensile strength of approx. 18 N/mm².Temperature resistance - 60 to 85 °Cpackacking unit 10 pieces

Your price after login
Add to wishlist
Exhaust ventilation hood diam. 150 mm
for suction arm, pvc, incl. throttle
The suction hood for extraction arm NW 150 ensures efficient and reliable capture of fumes, dust, and particles directly at the source. Equipped wi...

Your price after login
Add to wishlist

Accessories

Exhaust ventilation hood, made from metal
diam.150 mm, incl. throttle valve
Intended for connection to suction arms and hoses of DN 150

Your price after login
Add to wishlist
On/off switch via suction hood
Midi control
With the TEKA on/off switch via the extraction hood, you switch the extraction system on and off directly at the hood of the extraction arm. The sw...

Your price after login
Add to wishlist
Lighting for 1 suction arm incl. hood
for mobile/stationary filter units
The TEKA lighting kit adds an LED light with switch combination directly to the extraction hood of the extraction arm, so the welding point is well...

Your price after login
Add to wishlist
Filter cartridge, type easy clean plus
size.: 327 x 600 mm, filter area: 12,5m²
The TEKA filter cartridge, type easy clean plus with a large filter surface is the optional equipment for the CartMaster IFA, StrongMaster IFA and...

Your price after login
Add to wishlist
Adapter for extraction hood; diam.: 150
angular 300 x 360 mm, PVC, black
The TEKA nozzle plate made of black PVC is fitted to the plastic extraction hood of TEKA extraction arms. It is available in rectangular and round...

Your price after login
Add to wishlist
Adapter for extraction hood; diam 150 mm,
round 400 mm, PVC, black
The TEKA nozzle plate made of black PVC is fitted to the plastic extraction hood of TEKA extraction arms. It is available in rectangular and round...

Your price after login
Add to wishlist
Protection grille (finely woven) for installation
into the exhaust hood diam. 150/200
Round / fine-mesh spark guard for extraction hoodsTo prevent extraction systems from catching fire due to flying sparks, the round spark guard is t...

Your price after login
Add to wishlist
Cartridge protection NANNOX P50
for filter cartridges, 100 g (in a bucket)
The TEKA filter aid NANNOX P50 is used to coat filter cartridges. Coating the filter cartridges with the filter aid significantly increases their s...

Your price after login
Add to wishlist
