Product number:
952020055
TEKA OctaVent
Motor: 6 kW, Filter area: 80 m²
Delivery time on request
You will see your price after login

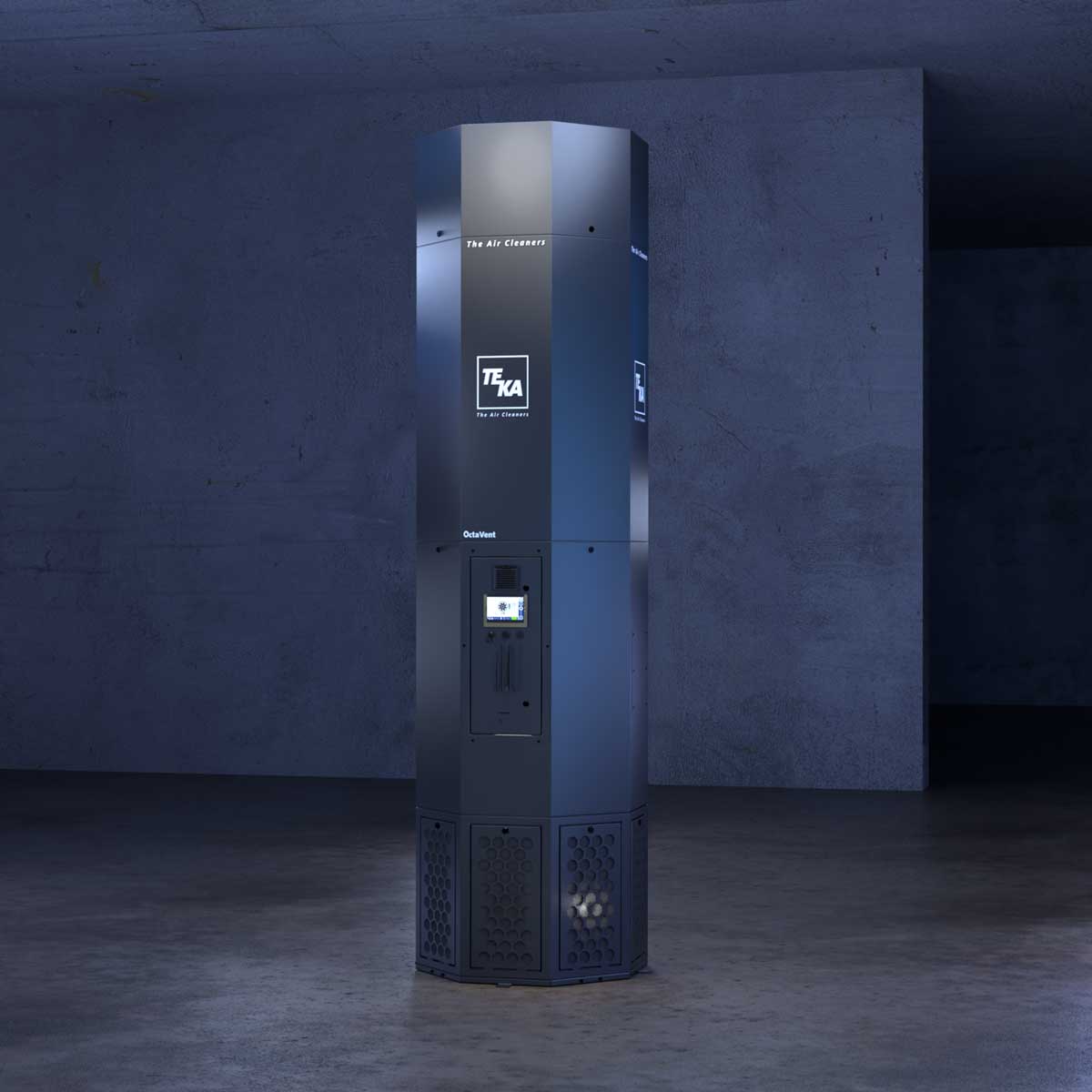

TEKA OctaVent
Motor: 6 kW, Filter area: 80 m²
Effective indoor air purification with OctaVent
Is your workshop affected by welding fumes or other dust? The OctaVent is the ideal solution for keeping your indoor air clean and healthy. Our compact stand-alone filter system has been specially developed to effectively capture and filter out pollutants and return the purified air to the room with minimal air movement at floor level.
This creates what is known as stratified ventilation in the area around the OctaVent, which significantly improves air quality.
Simple and powerful
The OctaVent is characterised by its straightforward handling. Thanks to its plug-and-play design, it can be set up and ready for use in no time – without time-consuming installations or complicated assembly. You simply set the unit up wherever it is needed.
The high-performance filter technology ensures that even fine airborne particles and harmful particles are reliably filtered out of the air. This allows you to create not only a clean but also a safe working environment for your staff.
Your benefits at a glance:
- Efficient filtration: Reliably removes pollutants such as welding fumes from your indoor air.
- Easy to use: Quick set-up thanks to stand-alone design.

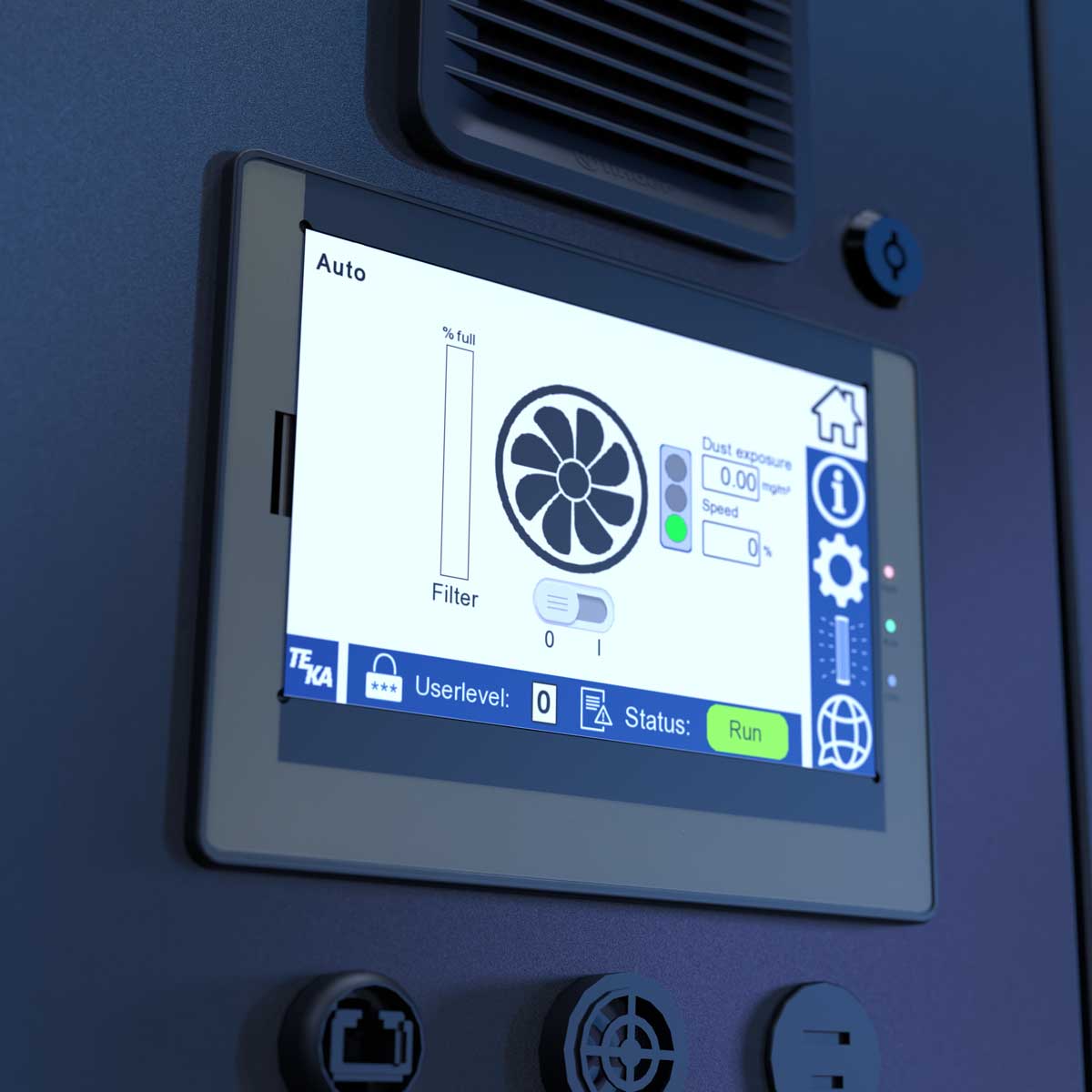

- Easy operation: 7” colour touchscreen with user-friendly software
- Easy dust disposal: Quick and clean dust disposal with a metal bucket
- Improved working conditions: Protects the health of your employees.
Invest in the health of your workforce and the quality of your indoor air. The OctaVent is the simple and effective solution that lets your workshop breathe.
Properties
| Charger adapter: | USB-A and USB-C ports on the front of the door |
|---|---|
| Cleaning pressure (bar): | 3–4 |
| Compressor capacity (litres per minute): | 60 |
| Dust container volume (litres): | 10 |
| Interface description: | Ethernet, Wi-Fi, GSM |
| Sensor unit: | integrated (dust sensor, temperature, humidity, CO₂, NOx and VOC) |
| fan: | direct drive, low maintenance |
| medium to be filtered: | dry, grease-free or oil-free dust / smoke |
| Volumetric flow (m³/h): | 6.500 |
| max. pressure (Pa): | 2,800 |
| Engine power (kW): | 6 |
| Supply voltage (V): | 380–480 |
| Connection frequency (Hz): | 50/60 |
| Current consumption (A): | 12 |
| Current type: | 3-phase + earth |
| Filter control: | automatic filter cleaning |
| Vorfilter: | deflector plate |
| main filter: | Dust class in accordance with DIN EN 60335-2-69:2008 |
| Cartridges number: | 4 to 20 |
| Filter surface (m²): | 80 |
| final filter: | Activated carbon |
| Width (mm): | 1,000 |
| Depth (mm): | 1,000 |
| Height (mm): | 3,822 |
| Colour: | RAL 7016 |
Replacement parts
Complete filter unit, including 4 filter cartridge
Dim. 1.000 mm x 1.000 mm x 1.370 mm
Dim. 1.000 mm x 1.000 mm x 1.370 mm
Your price after login
Filter cartridge, Type easy clean nano
Dim.: 260 x 1.200 mm, Filter area: 20 m²
Dim.: 260 x 1.200 mm, Filter area: 20 m²
Your price after login
