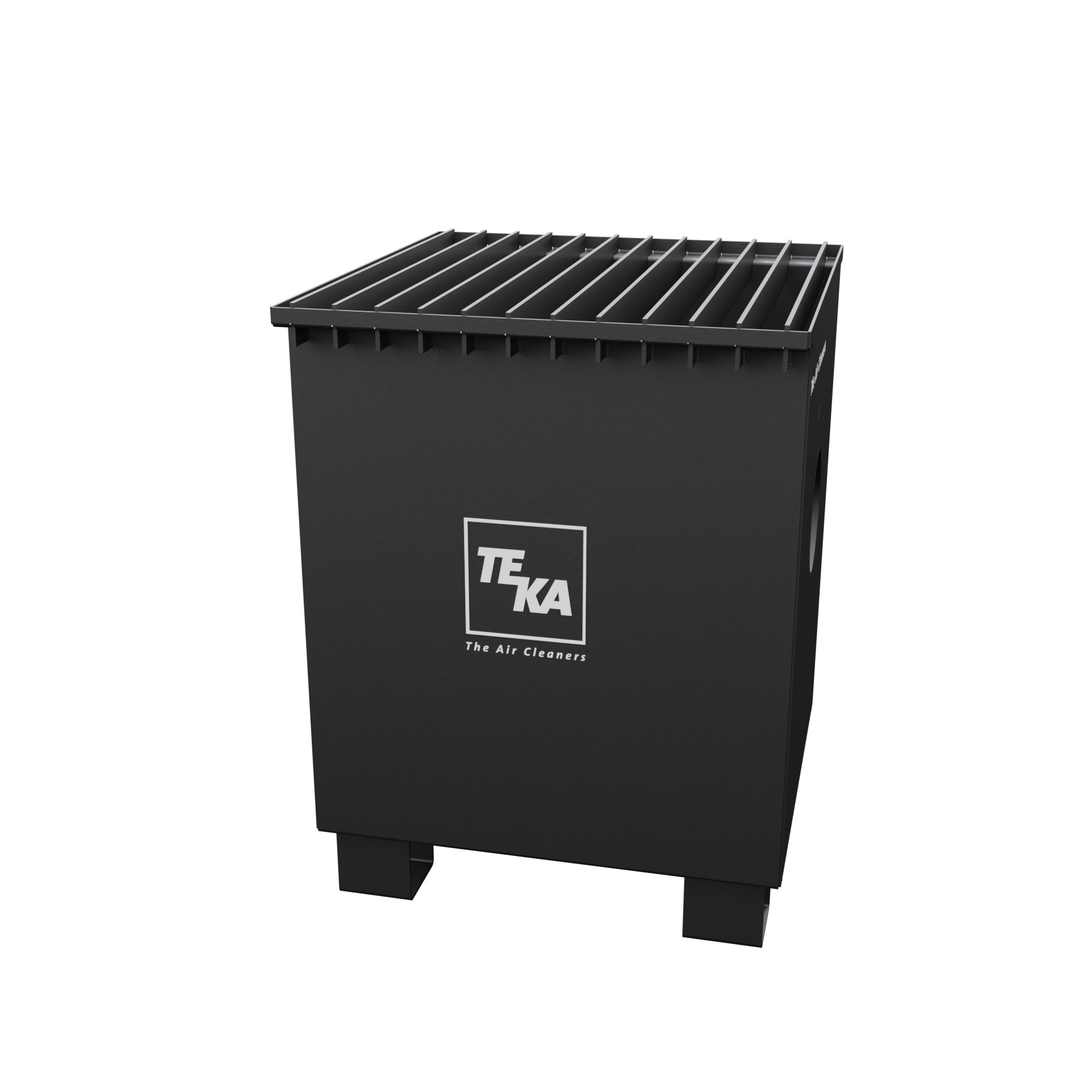

Suction table
600x635x800mm, with air-inlet spigot, diam.160mm
Delivery time on request
- Downdraft table for manual plasma
- Flat steel table top
- Sturdy welded construction
Suction table
600x635x800mm, with air-inlet spigot, diam.160mm
EAN: 4251906206454
The TEKA extraction table with downdraft extraction captures fumes and dust directly at the workpiece and extracts them downwards, for example during manual plasma cutting, welding and grinding. The table is connected to an extraction system or a fan via a connection spigot. This compact version is suitable for single workstations and smaller workpieces.
At a glance
- Downdraft extraction: extraction downwards through the table top
- Baffle plate: distributes the pollutants in the table and calms the air flow
- Table top: flat steel bars as a robust work surface
- Construction: sturdy welded design, outer surfaces with multi-layer coating
Your benefits
- Even extraction: The integrated baffle plate distributes the pollutants in the table and calms the air flow. This ensures extraction across the entire table top.
- Robust work surface: The flat steel table top holds workpieces securely and is built for everyday workshop use.
- Durable: The sturdy welded construction and the multi-layer coating of the outer surfaces are designed for long service.
- Adaptable: A firebrick table top is available as an option, and a matching drawer at extra cost. Special dimensions are available on request.
Applications
Manual plasma cutting, welding and grinding workstations in workshops and production.
The table is available in three widths; see the Properties tab for dimensions. We will be happy to advise you on choosing the right filter system or fan. Our overview page shows suitable systems for welding fume extraction.
Properties
| Weight (kg): | 67 |
|---|---|
| Width (mm): | 600 |
| Depth (mm): | 635 |
| Height (mm): | 800 |
| Colour: | RAL 7016 |
