Suction arm, 8m, diam.200mm
Hose type, internal joints
Delivery time on request
- With swivelling wall boom
- NW 200 for large air volumes
- Metal hood with damper
Suction arm, 8m, diam.200mm
Hose type, internal joints
EAN: 4251906208274

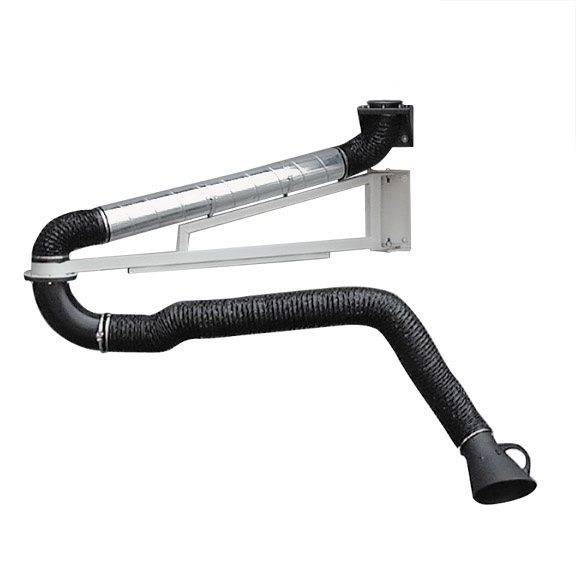

The TEKA combination of extraction arm and wall boom extends the reach of your extraction: a swivelling wall boom carries the extraction pipe, and at its end sits a hose-version extraction arm with internal joints. This lets you capture welding fumes even at workstations far from the wall. With NW 200, it is designed for larger air volumes, for example in flux-cored wire welding or work with high voltages.
At a glance
- Wall boom: swivelling, double-bearing, made of powder-coated steel profile
- Extraction arm: spring-assisted and self-supporting, internal joints
- Metal extraction hood: with damper and handle
- Load-bearing: wire feeders can be hung at the end of the boom
Your benefits
- Long reach: Boom and arm together cover a large working area.
- Stable bearing: The steel profile boom has two bearings and is powder-coated, with the extraction pipe mounted on top.
- Room for equipment: Hang a wire feeder at the end of the boom, for example, and keep your work surface clear.
- Fine adjustment: Spring support and the damper in the hood give you the right position and air volume.
Scope of delivery
Extraction arm with hood, wall boom with wall console, pipe bend, low-wear and self-lubricating swivel flange, and accessories. Roller guides for the C-rail are not included; we will be happy to send you a separate quote.
Applications
Large welding workstations and assembly areas, connection to single fans or central extraction and filter systems.
The operating instructions are available in the Downloads tab. More versions are shown in our overview of extraction arms. Free shipping.
Properties
| Length (mm): | 8,000 |
|---|---|
| Diameter (mm): | 200 |
