Set FilterCase Basic for 2 working places
incl. accessories
Delivery time on request
- Complete for 2 soldering stations
- With 2 Optiflex extraction arms
- Incl. brackets and hoses
Set FilterCase Basic for 2 working places
incl. accessories

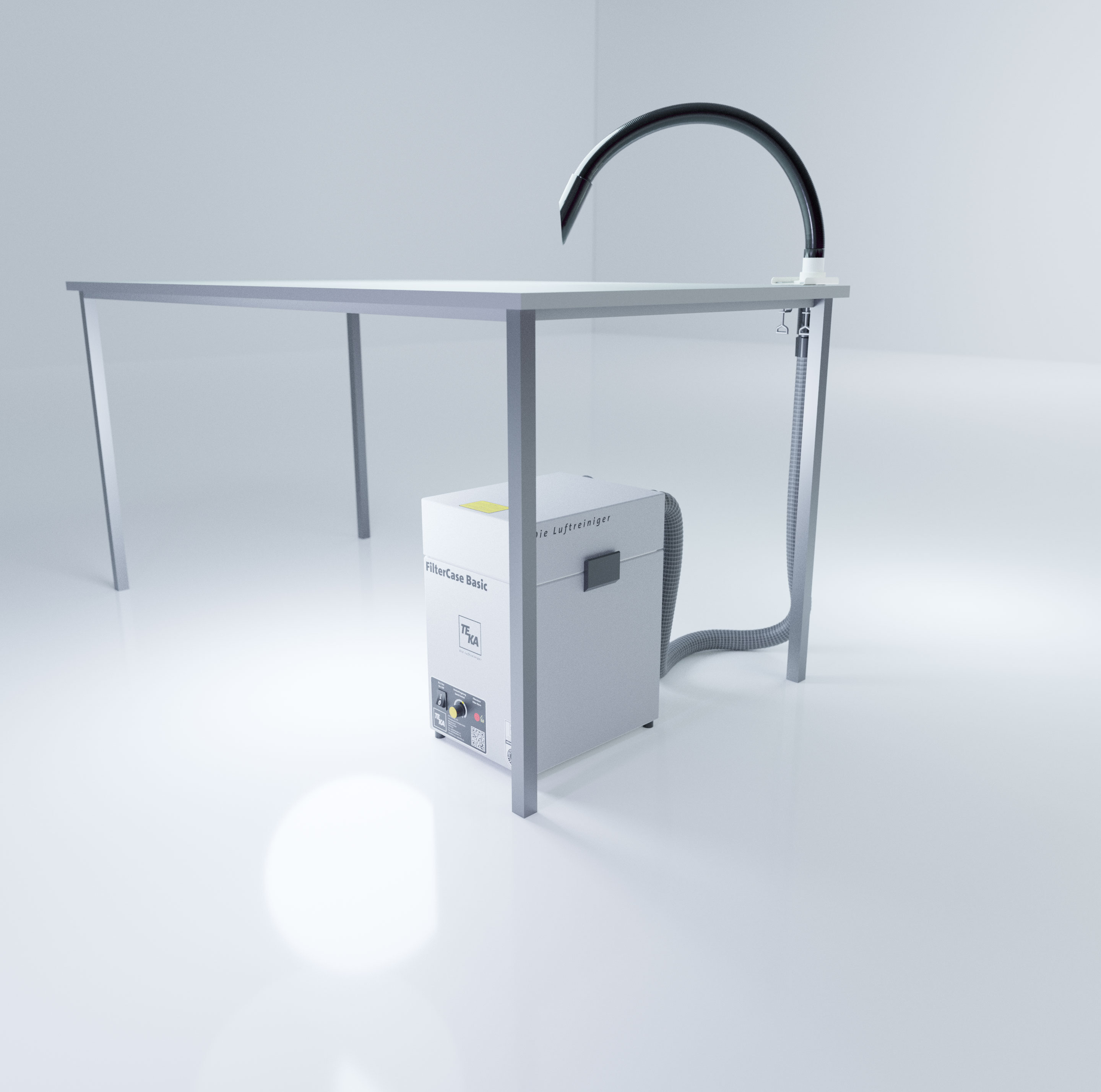

The TEKA Set FilterCase Basic is ready-assembled for two soldering workstations. The compact FilterCase Basic filter unit comes with two Optiflex extraction arms with tube nozzle, two table brackets and two suction hoses. The unit is intended for laser and soldering emissions with very little fume generation and for short-term use.
At a glance
- Filtration: G4 pre-filter mat, fine dust filter and activated carbon mat as final stage

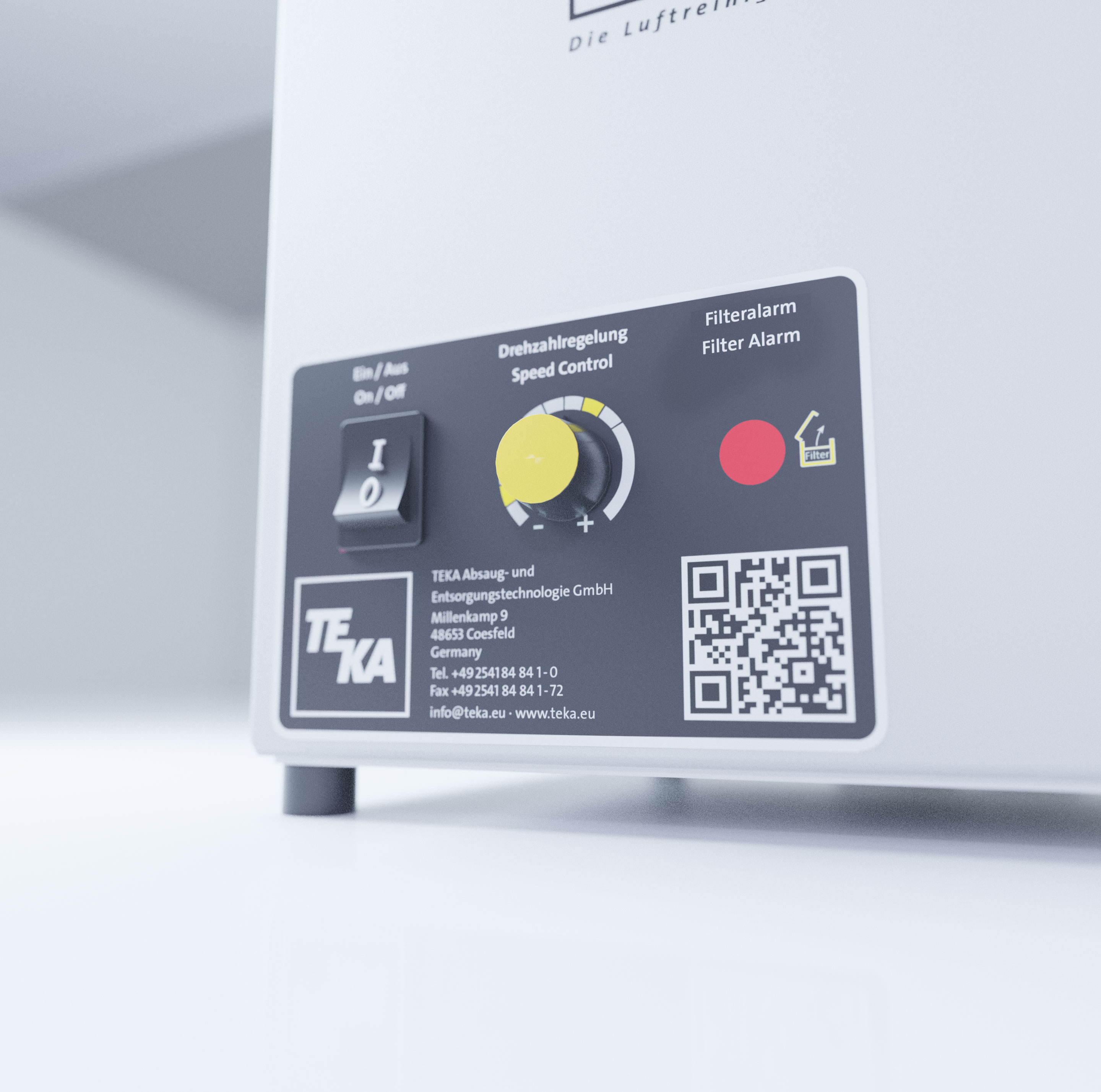

- Operation: on/off switch, speed adjustable via potentiometer
- Connection: two intake openings in the lid for the two extraction arms
- Housing: sheet steel, powder-coated inside and out
Your benefits
- Simple operation: one switch and one control knob are all it takes.

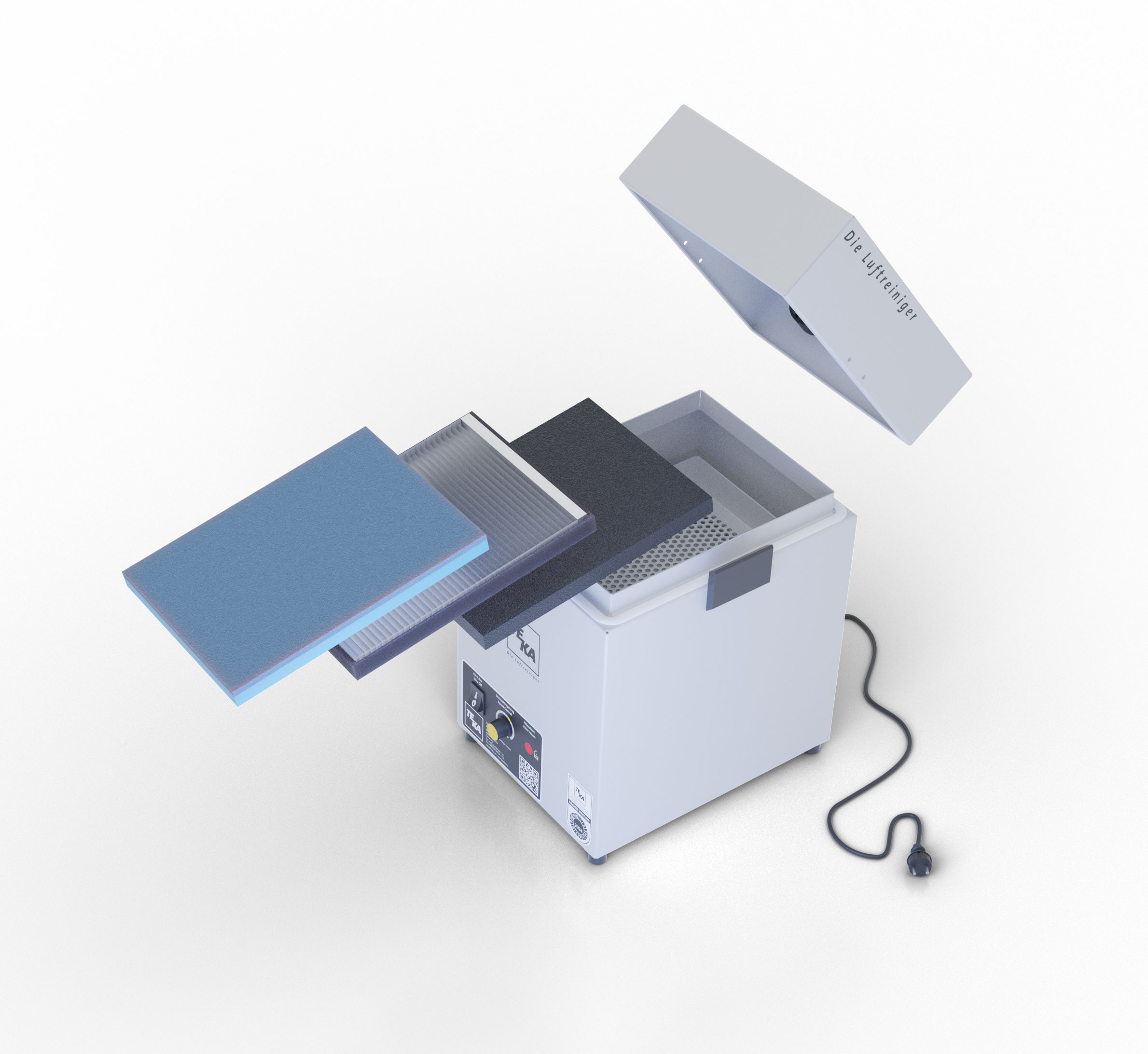

- Easy maintenance: You change the filters via the lid secured with toggle latches. The filter monitoring shows when a change is needed.
- Cleaned air stays in the room: It flows back into the work area through an exhaust grille at the rear.
Scope of delivery
FilterCase Basic, two Optiflex extraction arms with tube nozzle and mounting spigot, two table brackets with mounting clamps, two suction hoses with connection spigots and power cable with plug.
The operating instructions are available in the Downloads tab. Our overview page shows more systems for laser fume extraction.
Properties
| Intake opening (mm): | 2 x NW 50 |
|---|---|
| Main filter quantity: | 1 |
| Volumetric flow (m³/h): | 200 |
| max. pressure (Pa): | 17,000 |
| Engine power (kW): | 0.8 |
| Supply voltage (V): | 230 |
| Connection frequency (Hz): | 50 |
| Vorfilter: | ISO 16890 ePM20 coarse > 60% (G4) |
| Filter class: | DIN ISO 16890 ePM1 > 60% |
| Sound level (dB(A)): | 65 – in accordance with DIN EN ISO 3744 |
| Weight (kg): | 17 |
| Width (mm): | 280 |
| Depth (mm): | 330 |
| Height (mm): | 480 |
| Colour: | RAL 9010 |
Replacement parts

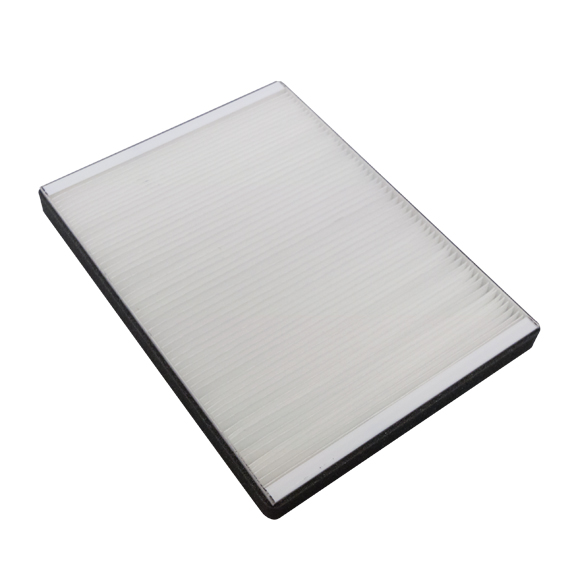

incl. activated carbon mat (10mm)
consisting of 2 carbon brushes
