Product number:
94004
LMD 504
1,2 kW, 230 V, 50/60 Hz
Ready to ship today, Delivery time appr. 1-3 workdays
You will see your price after login
Downloads
LMD 504
1,2 kW, 230 V, 50/60 Hz
EAN: 4251906206713
The mobile LMD 504 filter unit model has been designed to extract and filter fumes and fine dust particles.The system can be used to extract soldering fumes in electronics plants, to remove dust in laboratories or
during the laser marking process of a range of materials.
The contaminated air passes through a three-stage filter package which cleans it at a filtration efficiency of more than 99.95 %.

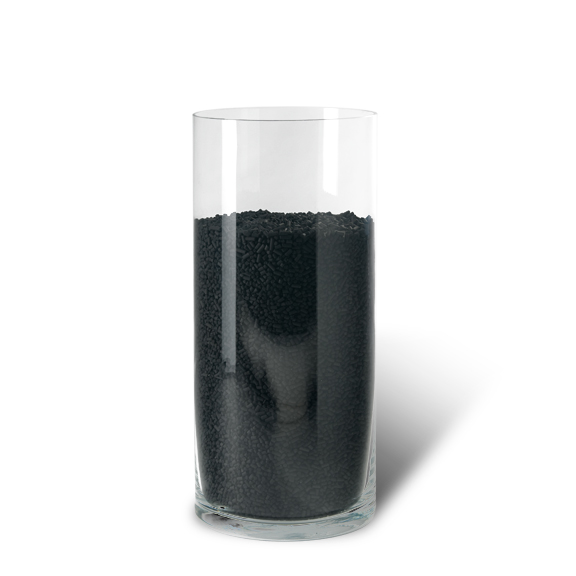

The third filter stage consists of an activated carbon granulate with a very large filter surface that is able to eliminate gases and odours, meaning that the purified air can usually be returned to the working area.
The system can be operated via the touch display or the Sub-D9 interface as required. The extraction performance of the maintenance-free turbine can be adjusted to meet requirements.
Standard equipment
- Three-stage filter package (M5 prefilter, H13 main filter, activated carbon filter)
- Sub-D9 interface for external control
Possible options
- Exhaust air spigot
Possibility of combined use with other TEKA products
- Collecting devices such as Optiflex suction arms, Alsident suction arms, extraction cabinets
- Particle pre-separator
Properties
| Blower type: | Dauerläuferturbine |
|---|---|
| Control interface: | SUB D9 |
| Intake manifold (mm): | 2x NW 50 |
| Intake opening (mm): | 2x NW 50 hinten |
| Interface description: | Pin 1&2 = Start (potentialfrei brücken -> z. B. Schalter) Pin 3&4 = Betrieb (potentialfrei) Pin 5&6 = Störung (potentialfrei) Pin 7 = Erhöhung der Tubinenleistung Pin 8 = Redu |
| Volumetric flow (m³/h): | 320 |
| max. pressure (Pa): | 15.000 |
| Engine power (kW): | 1,2 |
| Supply voltage (V): | 230 |
| Connection frequency (Hz): | 50/60 |
| Current consumption (A): | 9 |
| Filter control: | Aircontrol |
| Pre-filter: | M5 |
| Vorfilter: | ISO 16890 ePM10 > 50 % (F5) |
| main filter: | H13 |
| Filter class: | H13 |
| Hauptfilter Anzahl: | 1 |
| final filter: | Aktivkohlekassette: 7 kg Standardkohle |
| Separation efficiency (%): | 99,997 |
| Sound level (dB(A)): | 65 |
| Weight (kg): | 66 |
| Width (mm): | 365 |
| Depth (mm): | 768 |
| Height (mm): | 801 |
| Colour: | RAL 9010 |
Replacement parts
Accessories
Suction hose with two rigid connectors
Nominal width: 45 mm (NW 45), Length: 5 m
Nominal width: 45 mm (NW 45), Length: 5 m
