Product number: 973103015

Extraction unit type LFE 301 for laser application


Delivery time on request

Supply voltage (V)
Save as PDF
Product number Preview Supply voltage (V) Unit price Buy
Extraction unit type LFE 301 for laser application

EAN: 4251906211236

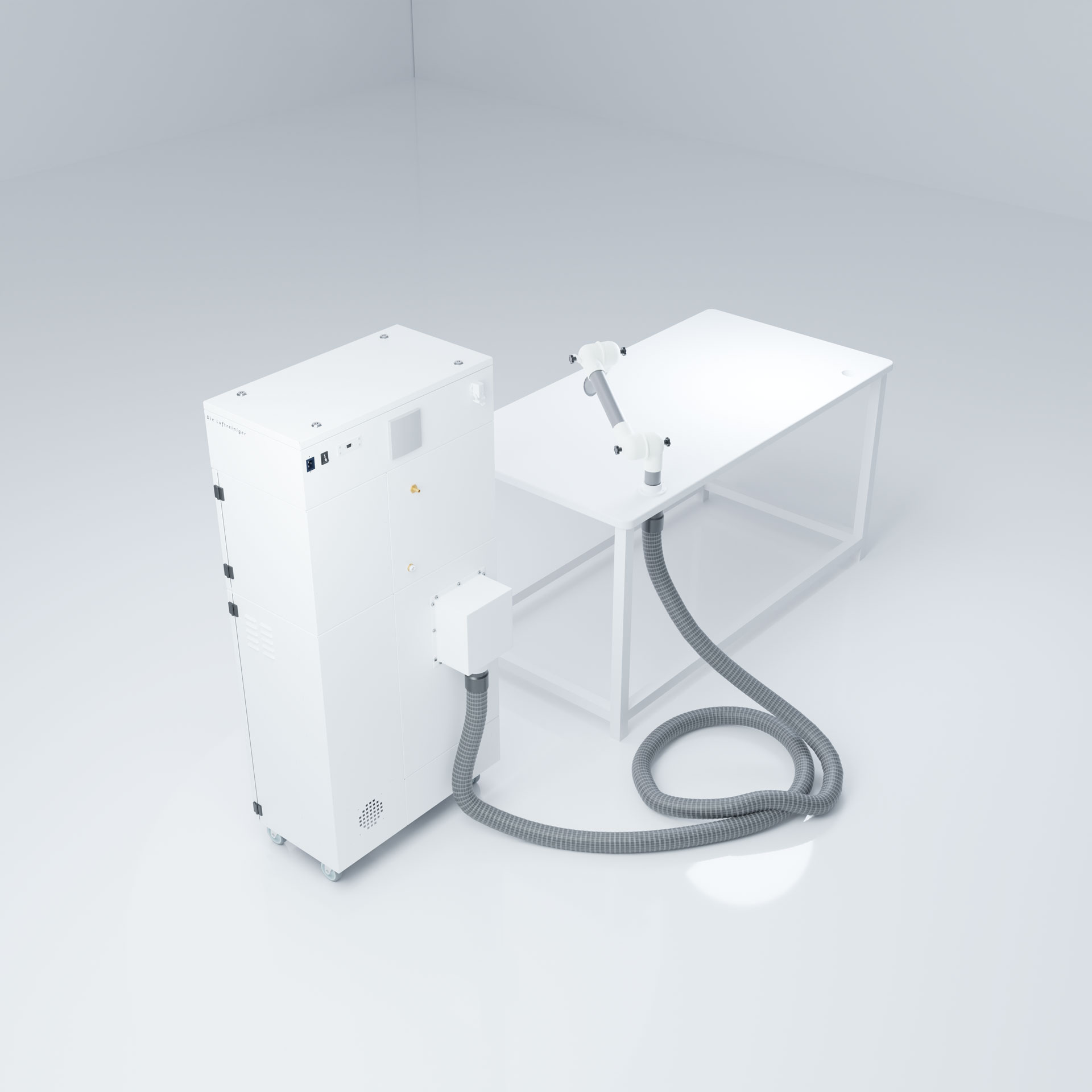

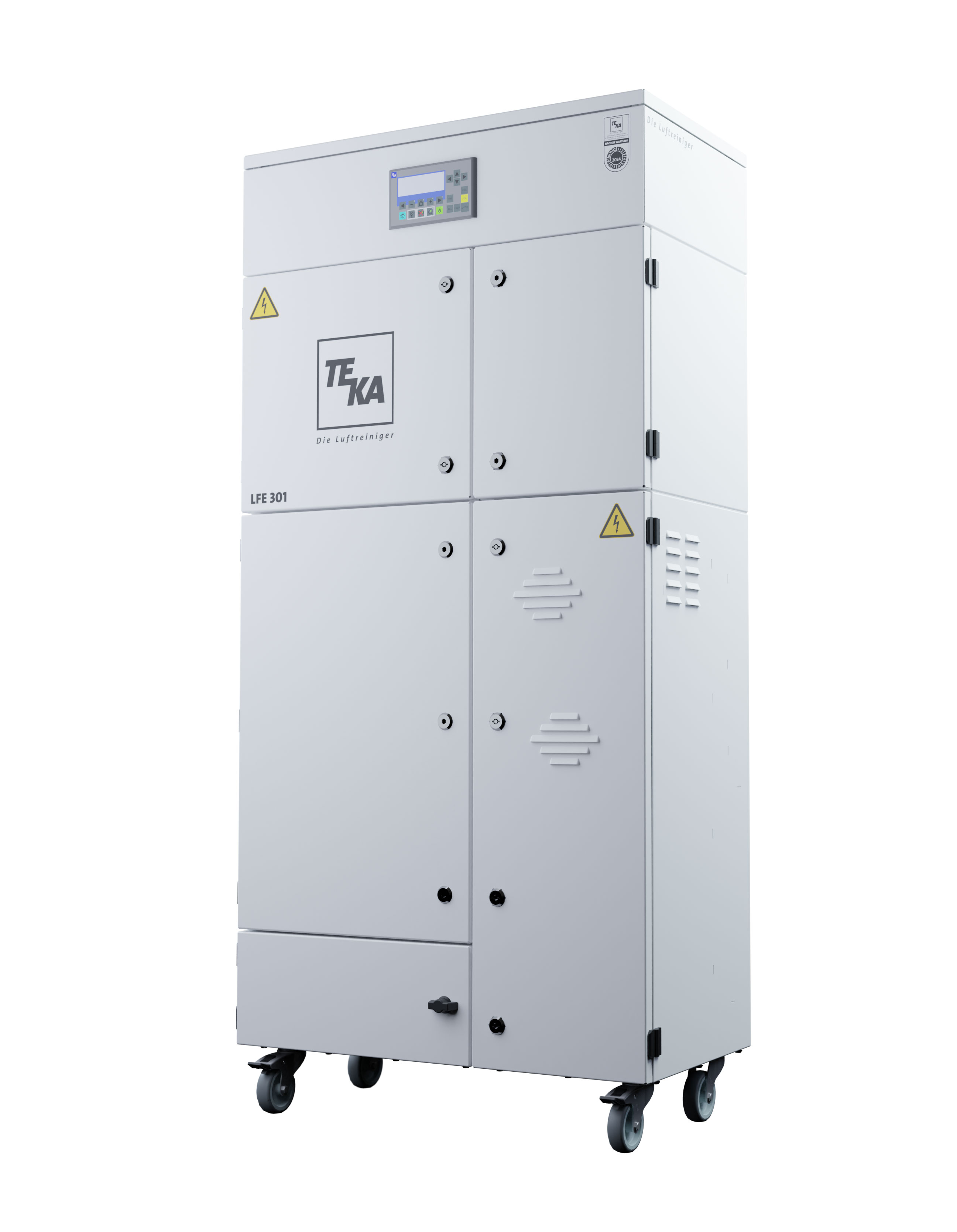

The mobile LFE 301 filter unit has been specially designed for use in environments in which it is necessary to extract fumes and particulate matter that are generated due to cleaning or laser cutting.

The process air is first taken into the LSE’s rear-mounted suction housing and is channelled to the filter compartment via a baffle plate. In the first filter stage, the inlet air passes through three filter cartridges which separate out the fumes and dusts using the surface filtration principle. The filter cartridges are cleaned fully automatically by compressed air depending on their level of contamination. Please note that a compressed air connection is required.

The removed dust particles arrive in a dust collecting tank below the filter cartridges. The dust collecting tank can be easily removed via a service door for emptying.

In the second filter stage, the air stream is guided through a cassette that is filled with an activated carbon granulate. This filter stage possesses a very large filter surface for the absorption of gases and odours.

The unit’s final filter stage consists of a HEPA disposable filter that removes any remaining fine particles. An automatic filter monitoring system indicates when it is necessary to change the filter cartridges or the HEPA final stage.

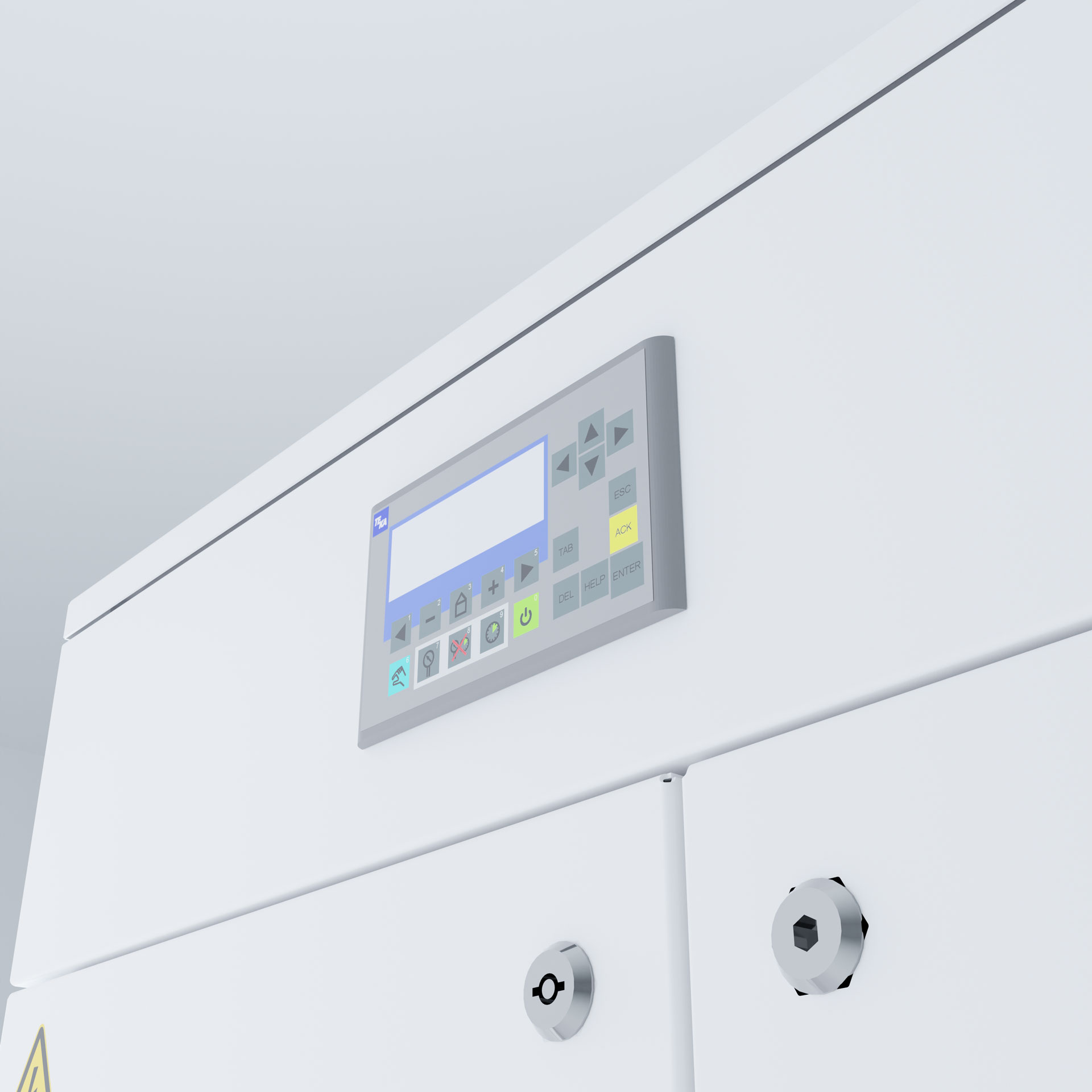

The suction device is equipped with powerful high-pressure turbines that can be continuously adjusted to increase or reduce the suction power. All the operating states can be output or set by the display.

In addition, the LFE unit is also equipped with a particle sensor in the pneumatic area in order to detect any potential filter breakthroughs and shut down the unit automatically in the event of an emergency.

The LFE is equipped with a Harting interface as standard, making it possible to control the unit externally, e.g. via laser.

Standard equipment:
- 3 x nanofilter cartridges, each with a filter surface area of 2.7 m²
- Activated carbon cassette filled with 7 kg of granulate
- H13 HEPA final stage
- Particle sensor
- Harting industrial interface for external control

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Volumetric flow [m³/h]: 500
max. pressure [Pa]: 15.000
Engine power (kW): 2 x 1,2
Supply voltage (V): 230
Connection frequency [Hz]: 50 / 60
Current consumption (A): 14,0
Automatic cleaning: yes
Filter control: Siemens S7
Pre-filter: Baffle plate
main filter: 3 x Filterpatronen ECN 2,7 m² ; 1x HEPA H13
final filter: Aktivkohle, Typ FK (Füllung ca. 7 kg)
Ansaugstutzen: Optional connection
Ausblas: Via outlet grille at the back of the unit
Sound level [dB(A)]: 68
Weight [kg]: 168
Width [mm]: 751
Depth [mm]: 400
Length [mm]: 1.590
Colour: RAL 9010 (Reinweiß)
Type of fan: Continuous running turbine
Control interface: Harting interface
Interface description: Pin 1&2: Start-stop Pin 3: ext. voltage input Pin 4: ext. error message Pin 5: ext. operation mess
