FilterCube 2N, 2.2 kW
400 V / 50 Hz, 20 m² (2 x 10 m²)
Delivery time on request
- IFA tested W3
- Power spray cleaning
- Central unit, two cartridges

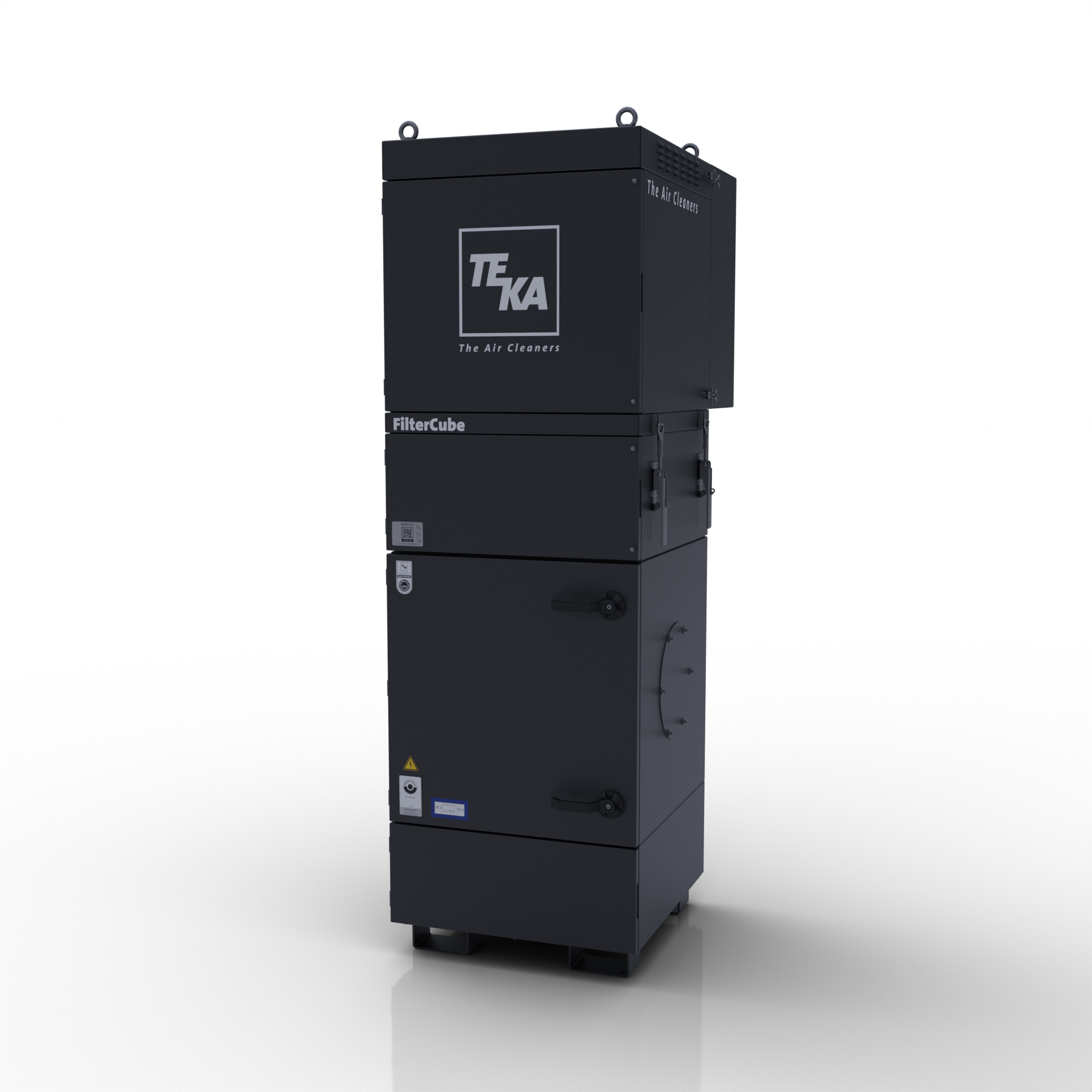

FilterCube 2N, 2.2 kW
400 V / 50 Hz, 20 m² (2 x 10 m²)
The TEKA FilterCube 2N is a central filter unit for welding fume extraction at several workstations at the same time. It is IFA-tested to DIN EN ISO 21904-1/-2 and meets welding fume separation class W3. With two filter cartridges, it is the compact entry-level size of the series.
At a glance
- IFA tested W3: to DIN EN ISO 21904-1/-2
- Power spray system: fully automatic cleaning via the display control
- Filter cartridges: two suspended, large-area cartridges
- Pre-separation: copper deflector plate
Your benefits
- For high-alloy steels: The W3 certification covers fumes from welding-related cutting and joining processes on unalloyed and high-alloy chrome-nickel steels.
- Cleaning as needed: The cartridges are cleaned with compressed air depending on the degree of soiling, without wear-prone rotating nozzles and with low cleaning pressure.
- Long service life: The filter cartridges are factory-coated with a filter aid. A copper deflector plate separates coarser particles in advance and protects the cartridges.
- Heavy particles straight into the container: Because the cartridges are suspended and the air flows against them from the side, heavy particles drop directly into the dust collection container.
- Easy to maintain: Maintenance doors give access to all operating areas, the cartridges are fixed with clamping brackets and the dust collection container has quick-release fasteners.
Applications
Several manual welding stations, welding robots, flame cutting and grinding tables and extraction tables in metalworking, on unalloyed and high-alloy steels. The unit is designed for dry, oil-free and grease-free fumes and dusts; for grinding, only for non-explosive materials.
Standard equipment
Display control with fully automatic cleaning, two filter cartridges, integrated compressed air tank, dust collection container with quick-release fasteners and PE bag, direct-drive fan with fan control, sound insulation housing for the fan and maintenance doors. The unit is delivered ready for operation; the electrical and compressed air connections are made on site by a qualified technician.
Options with IFA certificate
Safety device with particle sensor, extinguishing device and door with viewing window, dosing unit for filter aid, spark pre-separator and Easy-Clean-Plus filter cartridges.
Further accessories
Master-slave control and filter aid for topping up.
The operating instructions are available in the Downloads tab. Our overview page shows more systems for welding fume extraction.
Properties
| Cleaning pressure (bar): | 2–4 |
|---|---|
| Compressor capacity (litres per minute): | 75 |
| Dust container volume (litres): | 50 |
| Engine control system design: | Sold separately, including cable |
| Fan design: | on the unit in the soundproof enclosure |
| Filter control structure: | Sold separately, including cable |
| fan: | direct drive, low maintenance |
| medium to be filtered: | dry, grease-free or oil-free dust / smoke |
| Volumetric flow (m³/h): | 3.500 |
| max. pressure (Pa): | 2,900 |
| Operating point: | 1,900 m³/h at 2,500 Pa |
| Engine power (kW): | 2.2 |
| Supply voltage (V): | 400 |
| Connection frequency (Hz): | 50 |
| Current consumption (A): | 5 |
| Current type: | 3Ph+N+PE |
| Automatic cleaning: | Yes |
| Filter control: | Siemens (S7 + LOGO) |
| Engine control: | Motor protection switch |
| Vorfilter: | incl. |
| main filter: | filter cartridge |
| Cartridges number: | 2 to 10 |
| Filter surface (m²): | 20 |
| Ansaugstutzen (mm): | NW 250 – left or right side |
| Ausblas: | through the vent openings in the sound-absorbing baffle |
| Sound level (dB(A)): | 70 – in accordance with DIN EN ISO 3744 |
| Width (mm): | 665 |
| Depth (mm): | 983 |
| Height (mm): | 2,070 |
Replacement parts
Accessories
size: 327 x 600 mm, Degree of separation: BIA M
size.: 327 x 600 mm, filter area: 12,5m²
with 32A CEE and Schuko Power socket
size.: 327 x 600 mm, filter area: 7,7m²
size.: 327 x 600 mm, filter area: 12,6 m²
Questions about this product?
Just drop us a line about what you need – we'll get back to you and figure out together what fits your application.
