Product number:
20170090
EcoCube basic version 11kW
Delivery time on request
You will see your price after login
Downloads

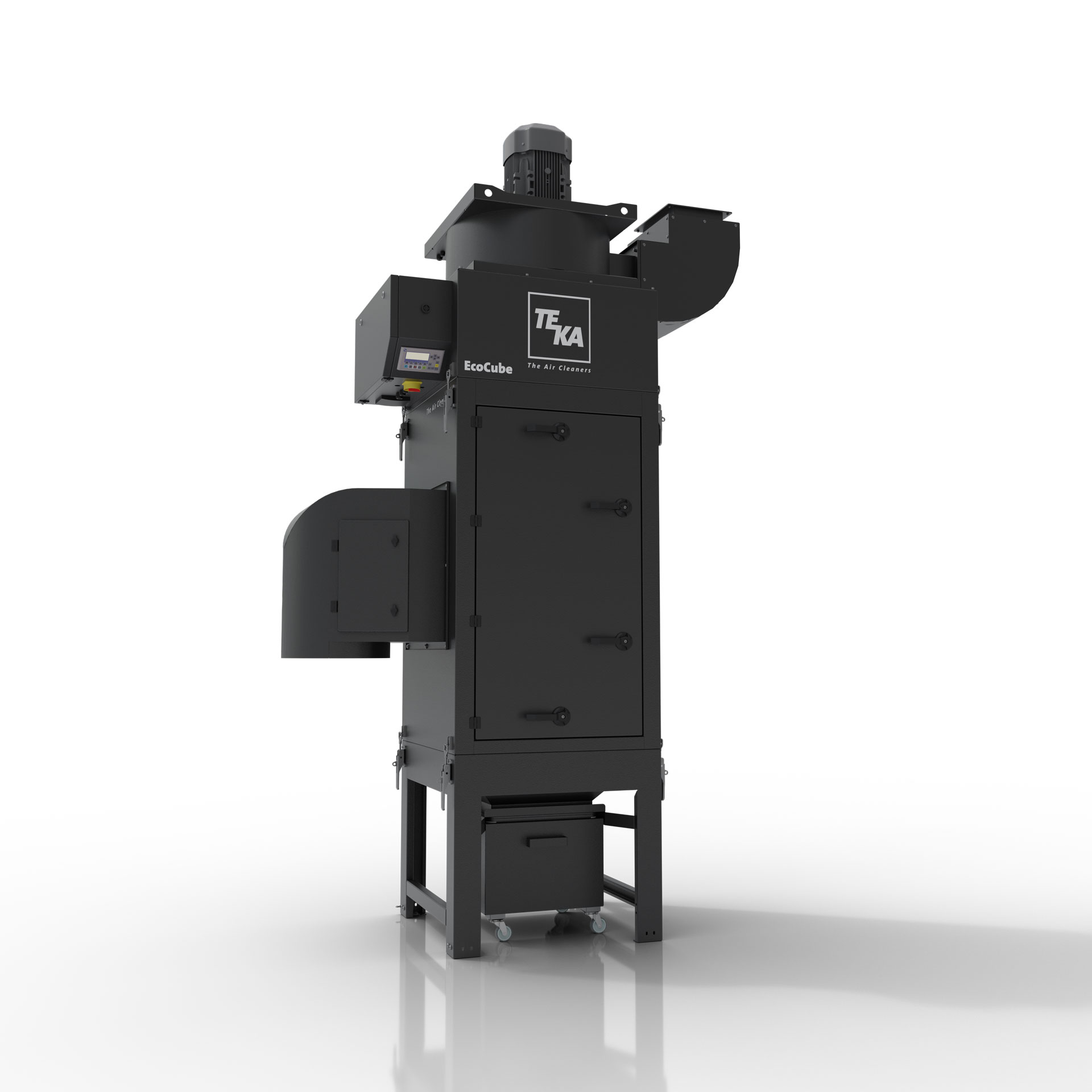

EcoCube basic version 11kW
The EcoCube stationary filter system is an IFA-tested filter system that
is very space-saving and can be used for various applications, primarily in
metal processing.
Smoke and dust are reliably separated with a filter efficiency of over 99%.
The filter cartridges are cleaned with compressed air, so that the filters only need to be replaced when sufficient air flow
can no longer be achieved.
The dust can be easily removed from the collection container.
Downtime is therefore kept to a minimum.
The clean air can usually be fed back into the work area, so that no warm air needs to be fed into the hall, especially
during the heating season. The
EcoCube thus helps to save energy costs. Standard
equipment
- 4 filter cartridges, type easy clean nano, each with a filter area of 25
m² - Display-controlled filter
cleaning - Frequency converter for universal connection 400-480V /
50/60Hz - Curved silencer for upward air outlet
Possible
option - Safety upgrade (particle sensor and maintenance door with viewing window and connection device for CO² fire extinguisher)
Possible combination with other TEKA products
- Collection devices such as extraction arms, cranes or extraction tables
is very space-saving and can be used for various applications, primarily in
metal processing.
Smoke and dust are reliably separated with a filter efficiency of over 99%.
The filter cartridges are cleaned with compressed air, so that the filters only need to be replaced when sufficient air flow
can no longer be achieved.
The dust can be easily removed from the collection container.
Downtime is therefore kept to a minimum.
The clean air can usually be fed back into the work area, so that no warm air needs to be fed into the hall, especially
during the heating season. The
EcoCube thus helps to save energy costs. Standard
equipment
- 4 filter cartridges, type easy clean nano, each with a filter area of 25
m² - Display-controlled filter
cleaning - Frequency converter for universal connection 400-480V /
50/60Hz - Curved silencer for upward air outlet
Possible
option - Safety upgrade (particle sensor and maintenance door with viewing window and connection device for CO² fire extinguisher)
Possible combination with other TEKA products
- Collection devices such as extraction arms, cranes or extraction tables
Properties
| Fan design: | included in the set, including silencer elbow, right-hand side |
|---|---|
| Intake manifold (mm): | NW 400 via intake duct, left-hand side |
| medium to be filtered: | dry, grease-free or oil-free dust / smoke |
| Volumetric flow (m³/h): | 8,140 |
| Engine power (kW): | 11 |
| Supply voltage (V): | 400 - 480 |
| Connection frequency (Hz): | 50/60 |
| Current consumption (A): | 22.5 |
| Current type: | 3Ph+N+PE |
| Automatic cleaning: | Yes |
| Filter control: | automatic filter cleaning |
| Engine control: | frequency converter |
| main filter: | BIA M, Nano model |
| Cartridges number: | 4 to 25 |
| Filter surface (m²): | 100 |
| Separation efficiency (%): | 99 (according to the BGIA test certificate) |
| Ausblas: | via silencer elbow |
| Sound level (dB(A)): | 75 + max. 10 during the cleaning pulse |
| Width (mm): | 800 |
| Depth (mm): | 800 |
| Colour: | RAL 7016 |
