CareMaster IFA
with suction arm 4m, hose type, external joints
Delivery time on request
- IFA certified W3
- Optical and acoustic filter alarm
- Spring-assisted extraction arm
CareMaster IFA
with suction arm 4m, hose type, external joints
EAN: 4251906207314

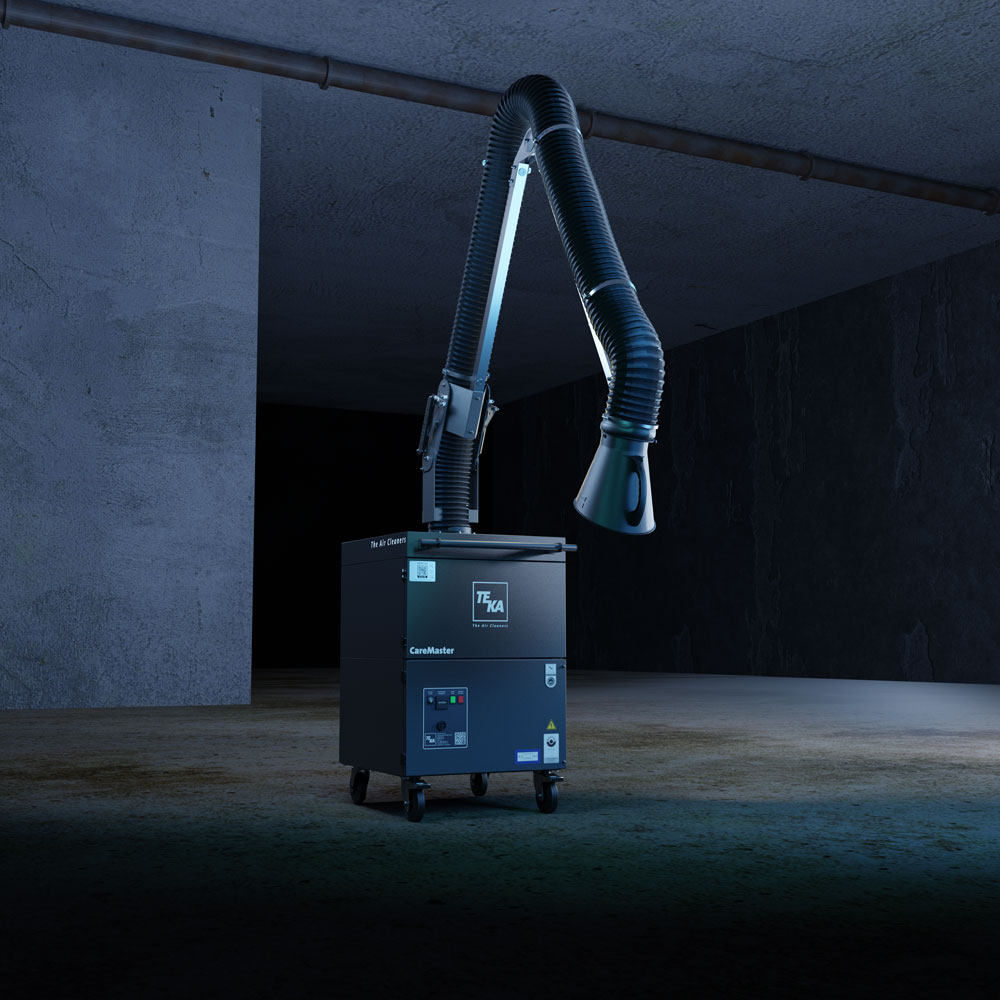

The TEKA CareMaster IFA is a mechanical mobile welding fume extractor. It filters fumes and dust produced during thermal joining and cutting of metals, for example when welding unalloyed steels and stainless steel. This version has an extraction arm with external joints.
At a glance
- IFA tested W3: with all TEKA extraction arms, also for high-alloy steels

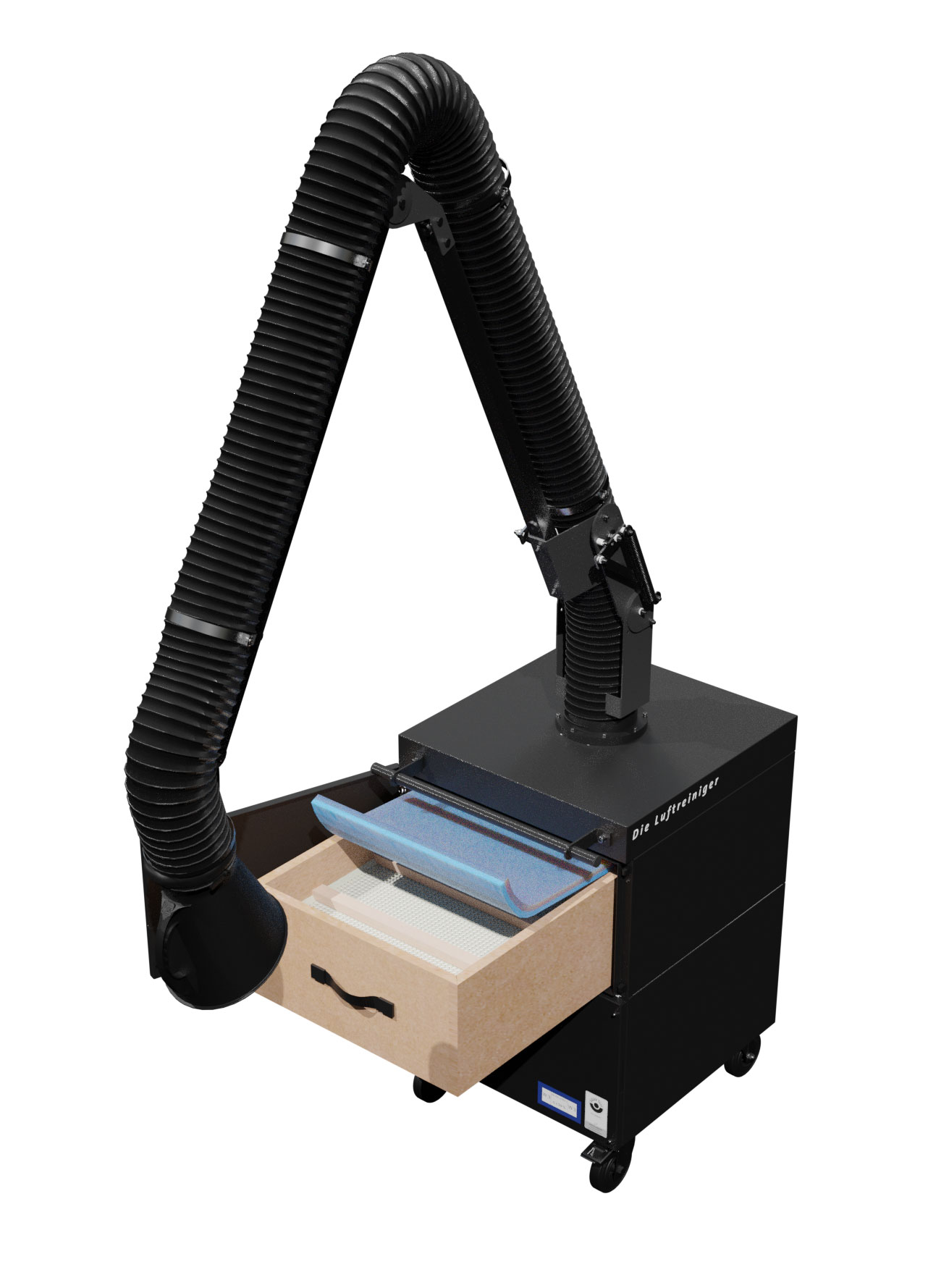

- Filtration: baffle plate, large-area pre-filter mat, main filter
- Filter monitoring: optical and acoustic warning signal
- Mobile: on castors, supplied ready to plug in
Your benefits
- Thorough filtration: The baffle plate and large-area pre-filter separate coarse particles, and the main filter then separates fine fumes and dust.
- Tight filter seating: A built-in seal seating lifting device ensures that the filters are seated tightly.
- Consistent performance: The fan with high negative pressure delivers a high air volume even when the filters are loaded. This allows good filter service life.
- No disturbing draught: The cleaned air exits upwards through an outlet grille at the rear. Even a short distance away, no disturbing air flow is noticeable.
- Easy to position: Thanks to the spring support inside the extraction arm, it can be moved into any position. The extraction hood with integrated throttle valve swivels freely in any direction and is self-supporting.
- Everything in view: An operating hours counter and an operating indicator light are standard.
Applications
Welding workstations for unalloyed steels and stainless steel, workshops and production plants.
Options
Activated carbon filter insert, automatic start/stop, lighting kit, on/off switch via the extraction hood, aluminium mesh pre-filter and spark protection grid for the extraction hood.
The operating instructions and the IFA certificate are available in the Downloads tab. Our overview page shows more systems for welding fume extraction.
Properties
| Main filter quantity: | 1 |
|---|---|
| Volumetric flow (m³/h): | 2.500 |
| max. pressure (Pa): | 2,500 |
| Engine power (kW): | 1.1 |
| Supply voltage (V): | 400 |
| Connection frequency (Hz): | 50 |
| Current consumption (A): | 2.6 |
| Current type: | 3Ph+N+PE |
| Vorfilter: | ISO 16890 ePM coarse > 45% |
| Filter class: | DIN ISO 16890 ePM1 > 80% |
| Sound level (dB(A)): | 70 – in accordance with DIN EN ISO 3744 |
| Weight (kg): | 122 |
| Width (mm): | 665 |
| Depth (mm): | 681 |
| Height (mm): | 995 |
| Colour: | RAL 7016 |
| Diameter (mm): | 150 |
Replacement parts
Accessories
size.: 610 x 610 x 186 mm+ (6 mm sealing (x2))
into the exhaust hood diam. 150/200
